DUAL TECHNOLOGY
KNOW THE RISK AND ACT TO PREVENT

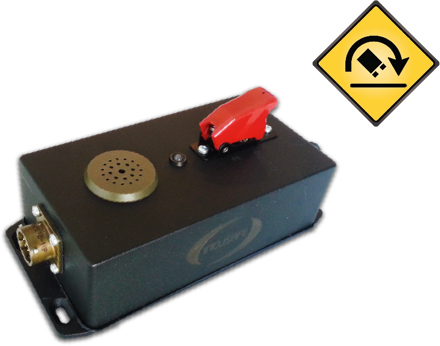

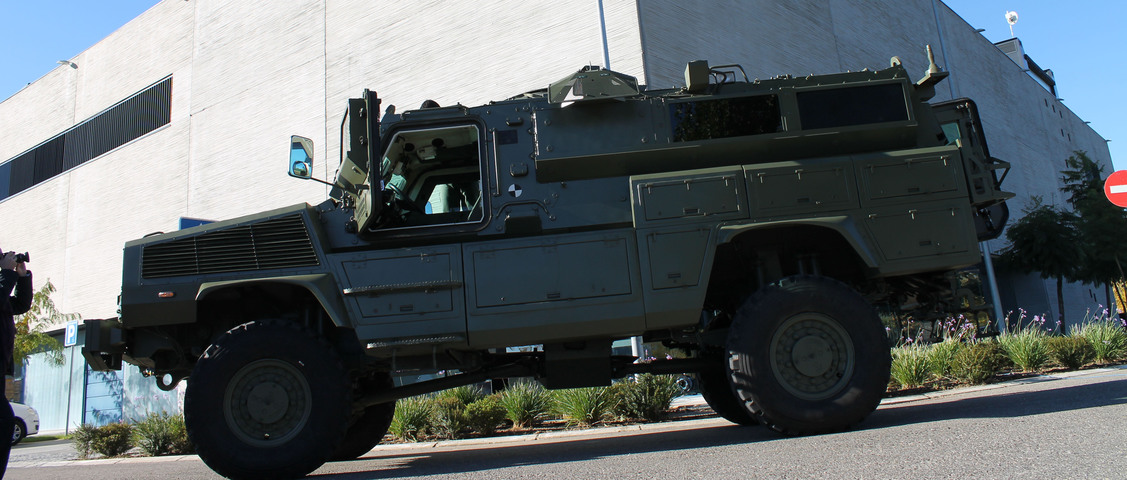

VDEF INCLISAFE appears as a result of the need to providing the Spanish Army RG31 armoured vehicles with a system helping the drivers quantify and know overturns risks during manoeuvres executed at every moment.
In vehicles similar to RG31, rather high center of gravity, it becomes essential to have additional and, specially, objective support beyond the simple driving training given.
FEATURES
- - NOC code (NATO): 6605-332116466
- - Universal: it can be configured for any military vehicle
- - Measurements: 180x80x50 mm (LxWxH)
- - Blackout function
- - USB data charging connexion
- - Supply: 24 Vdc
- - Accuracy: +- 0,16º
- - Audible alarm: 4 levels, configurable
- - Digital display
- - Software: training, analyse and configuration proceeds.

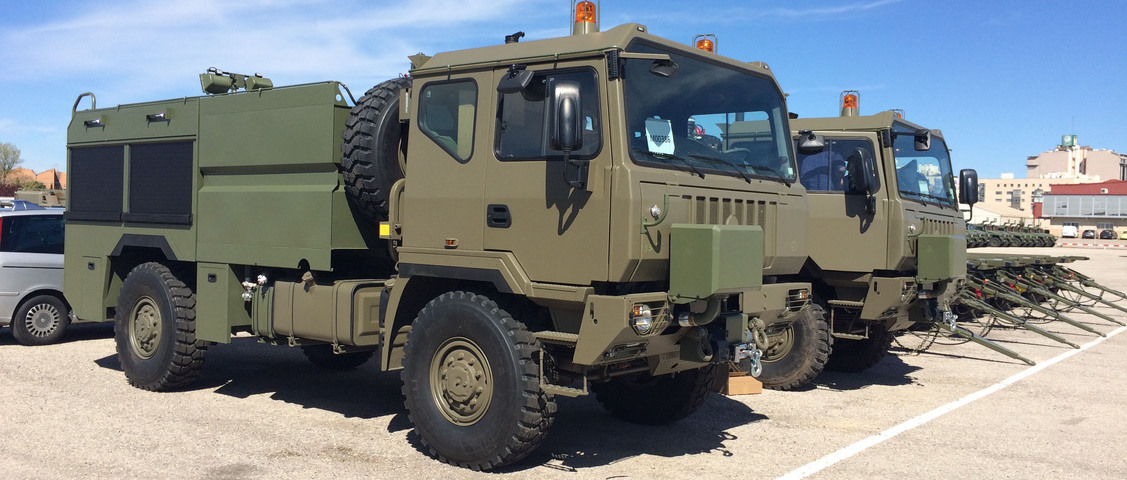

FIRE EXTINCTION
LOWER OVERTURN PROBABILITY

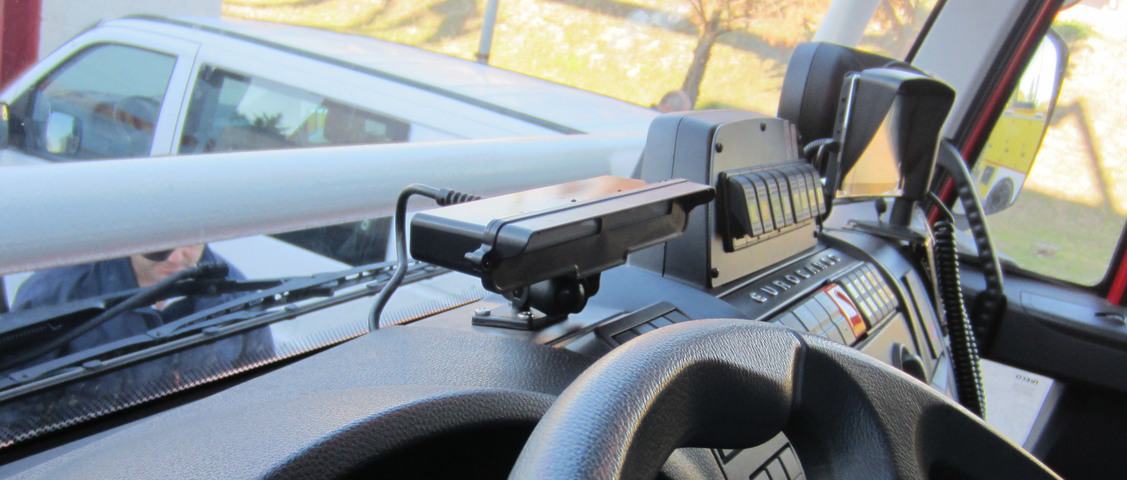

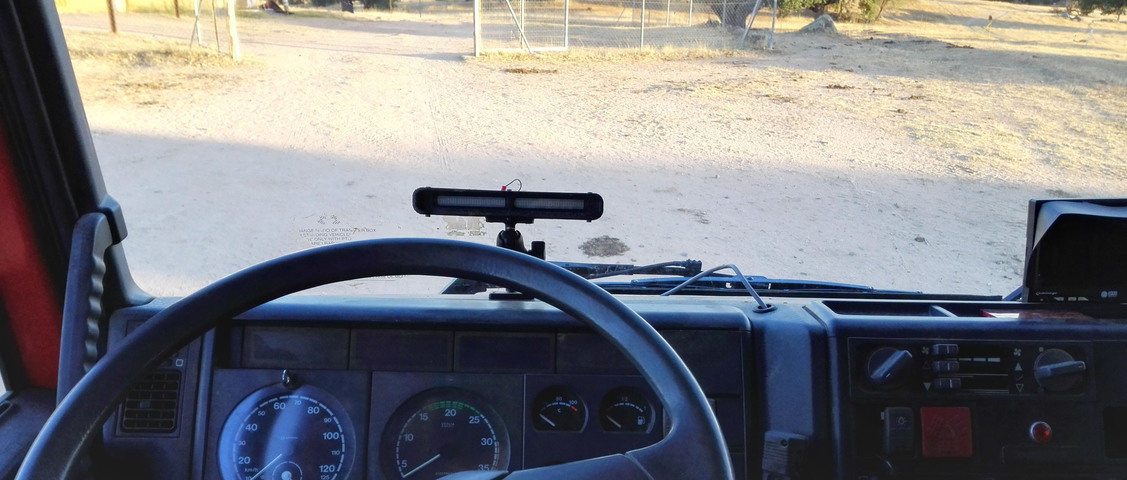

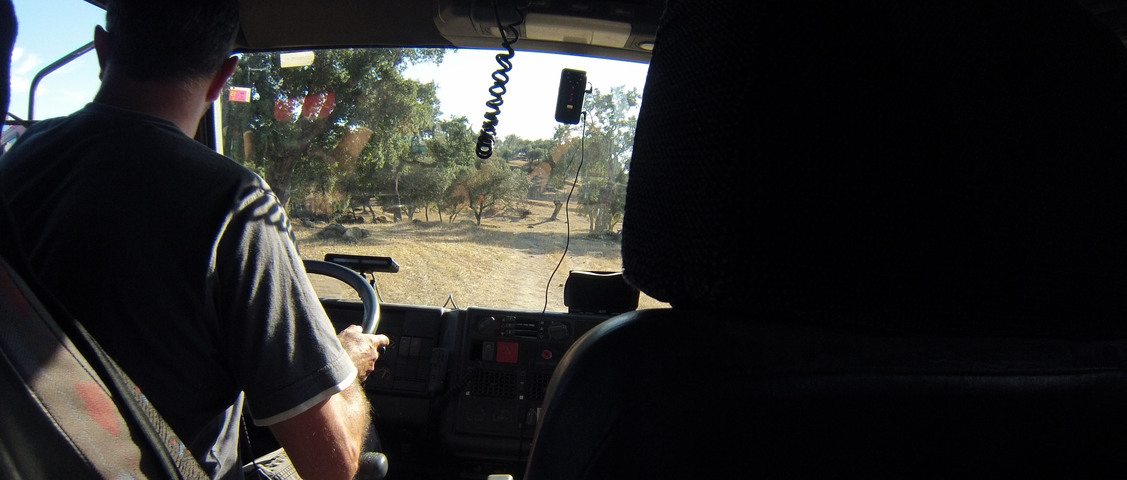

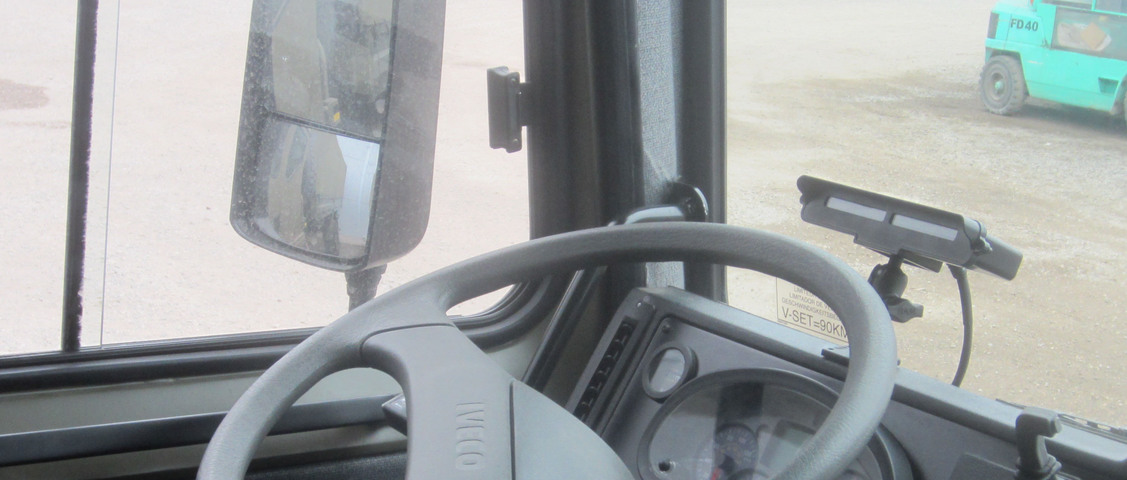

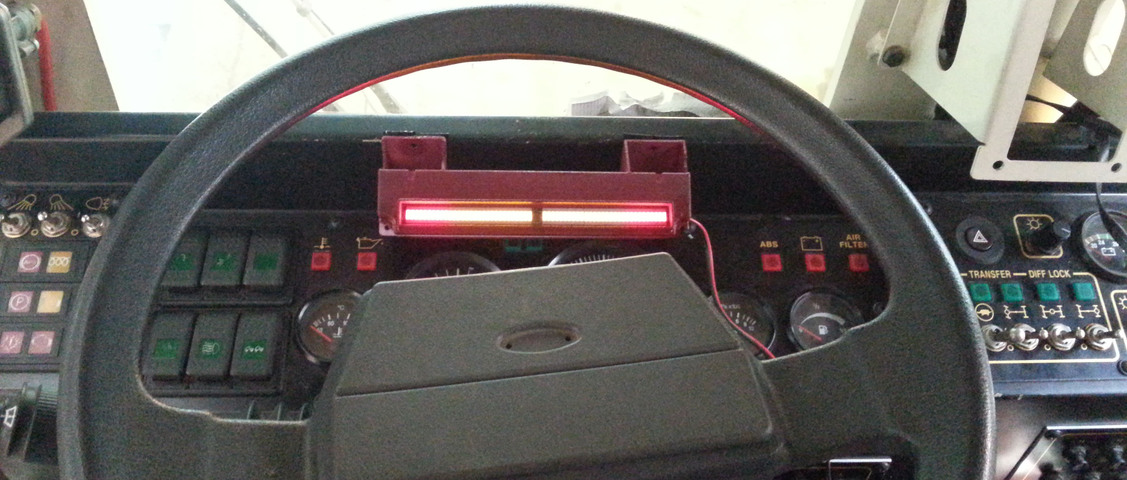

VEXT INCLISAFE is an overturn risk warning stabilometer so it is designed and intended to warn the driver against an inestability situation when driving by means of a stronger warning sign just as the overturn risk is higher.

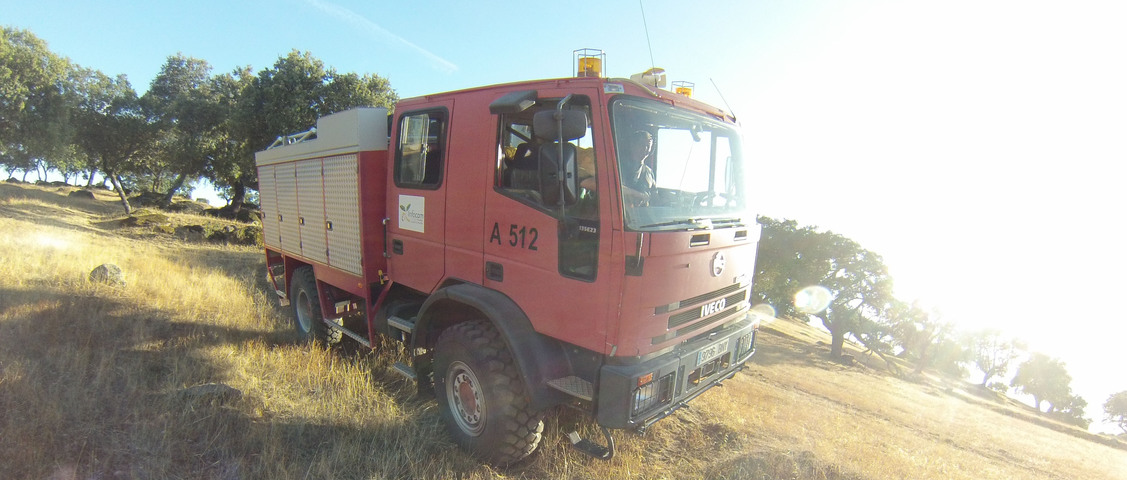

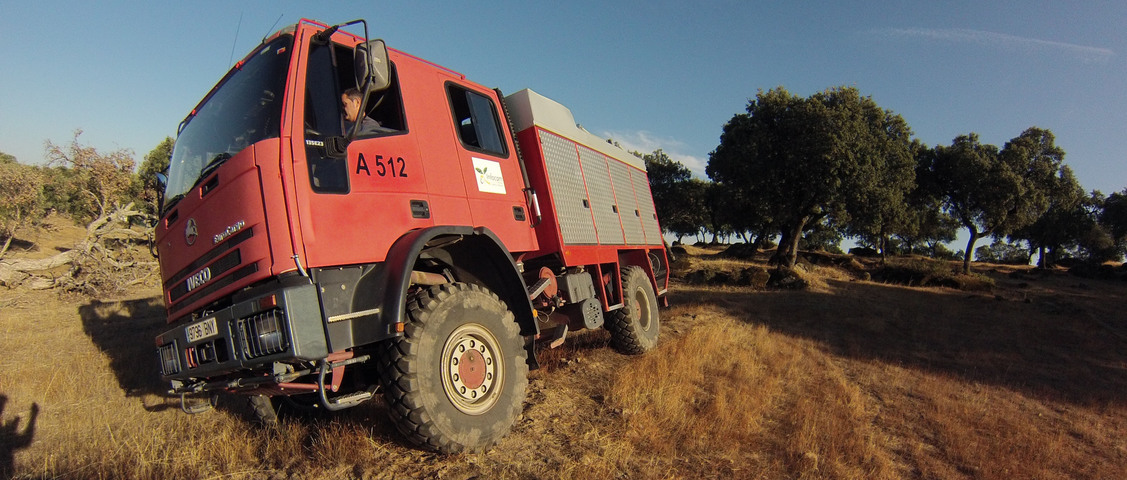

The main problem in terms of safety when a fire extinction vehicle overturns is that it can overturn very easily. Also, the overturn angle changes at every moment depending on the speed and ground vibrations. That is the reason why many overturns happen unpredictably on a lower gradient which a vehicle theoretically should remain steady.
FEATURES
- - Universal: it can be configured for any fire extinction vehicle
- - Measurements: 180x80x50 mm (LxWxH)
- - USB data charging connexion
- - Supply: 24 Vdc
- - Accuracy: +- 0,16º
- - Audible alarm: 4 levels
- - Digital display
- - Software: training, analyse and configuration proceeds
ADVANTAGES FOR VEXT INCLISAFE USE






FARMING
A BIG PROBLEM, A BIG SOLUTION
Serious and fatal accidents caused by tractors and equipment overturns are a big concern in Spain and all over the world as 70% of fatal accidents with farm equipment are caused by a tractor overturn. There are 80 dead people every year because of that.

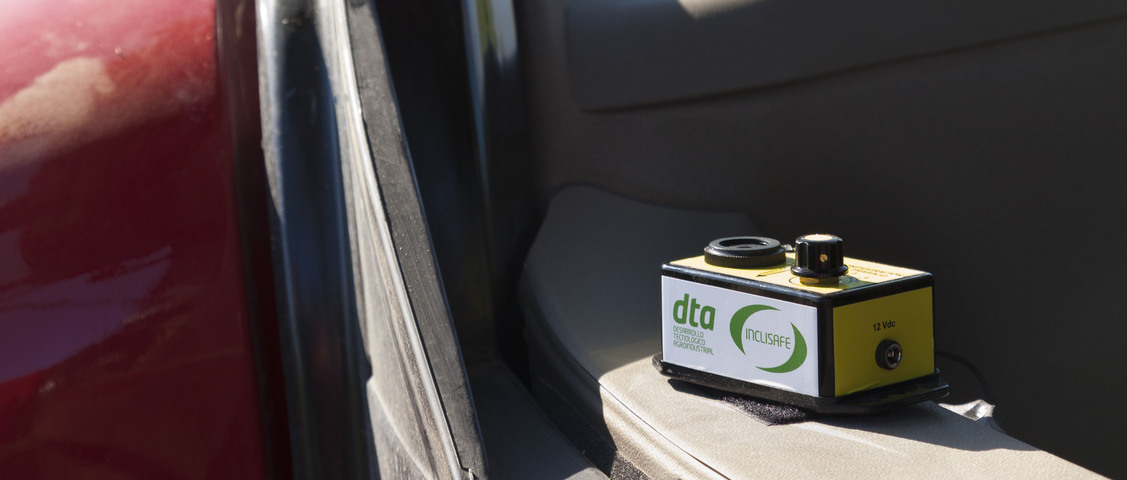

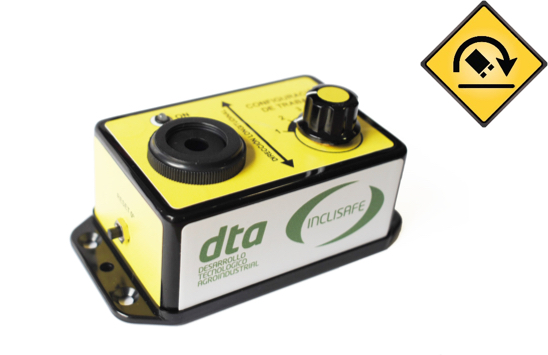

INCLISAFE is a stabilometer measuring dynamic parameters in equipment which it is instaled, calculates at its stability at every moment and warns about an eventual overturn risk by means of a variable frequency audible depending on hazard situation.
FEATURES
- - Universal: it can be configured for any tractor
- - Measurements: 110x65x55 mm (LxWxH)
- - USB data charging connexion
- - Supply: 12 Vdc
- - Accuracy: +- 0,16º
- - Alarm levels: 4
- - Internal configurations number: 5 according to tools, hanging equipments, counterweights, etc
- - Warping and nodding control
